INPUT DATA:
1. Name and units

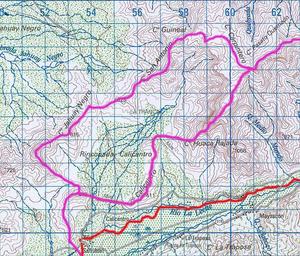

1.1 Watershed/basin:
1.2 Select:
[Default: SI units (metric); U.S. Customary units unavailable 080801].
Total number of input data in this section = 2.
2. Selections
2.1 Total simulation time (hr):
[Default: 48 hr].
2.2 NRCS 24-hr rainfall type:
[Default: Type I].
2.3 NRCS Antecedent Moisture Condition:
[Default: AMC II].
Total number of input data in this section = 3.
3. Network topology
Please note that U = (R + 1)/2; likewise, R = 2U - 1. Otherwise, a fatal error will occur.
3.1 Number of upland watersheds U:
3.2 Number of reach watersheds R:
Total number of values in this section = 2.
4. Upland watershed hydrologic data Number of values in each box: U (See Input 3.1). Place a comma after each value; 150 viewable characters, 200 maximum.
4.1 Topological numbers: An array of sequential numbers [digits] starting with 1 and ending with U [Example: 1,2,...,U].
4.2 Drainage area A (km2):
4.3 Runoff curve number CN (AMC = II):
4.4 Hydraulic length L (m):
4.5 Average land slope S (%):
4.6 Average velocity [along hydraulic length] V (m/s):
4.7 Precipitation P (mm):
Total number of values in this section = 6 U.
5. Reach watershed hydrologic dataNumber of values in each box: R (See Input 3.2).
Place a comma after each value; 150 viewable characters, 200 maximum.
5.1 Five-digit topological number N:
5.1.1 One-digit tributary left/right indicator S: [Viewed from upstream to downstream: Main = 0;
Right = 1; Left = 2]
5.2 Drainage area A (km2):
5.3 Runoff curve number CN (AMC = II):
5.4 Hydraulic length L (m):
5.5 Average land slope S (%):
5.6 Average velocity [along hydraulic length] V (m/s):
5.7 Precipitation P (mm):
Total number of values in this section = 8 R.
6. Reach watershed hydraulic data Number of values in each box: R (See Input 3.2).
Place a comma after each value; 150 viewable characters, 200 maximum.
6.1 Baseflow Qb (m3/s):
6.2 Channel length L (m):
6.3 Channel slope So:
6.4 Channel width B (m):
6.5 Channel side slope z ( z H : 1 V):
6.6 Manning's n:
6.7 Infiltration velocity Vi (m/s):
Total number of values in this section = 7 R.
|
